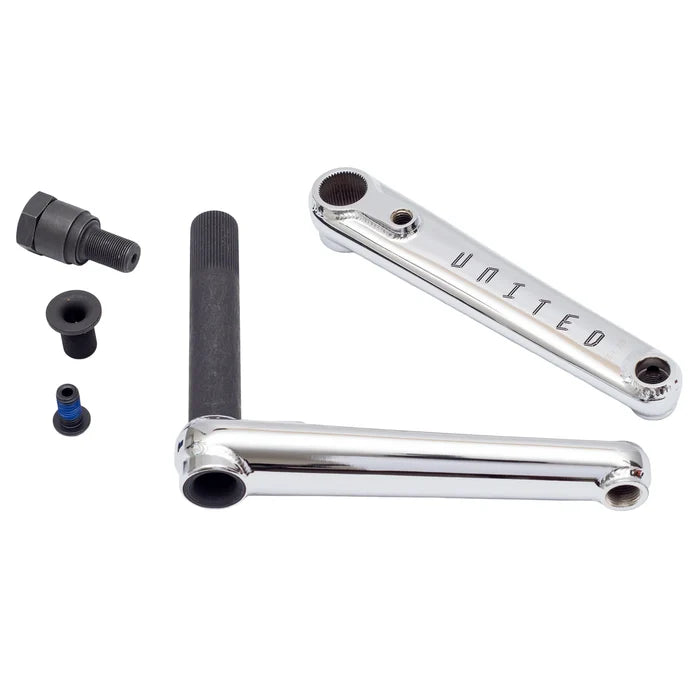

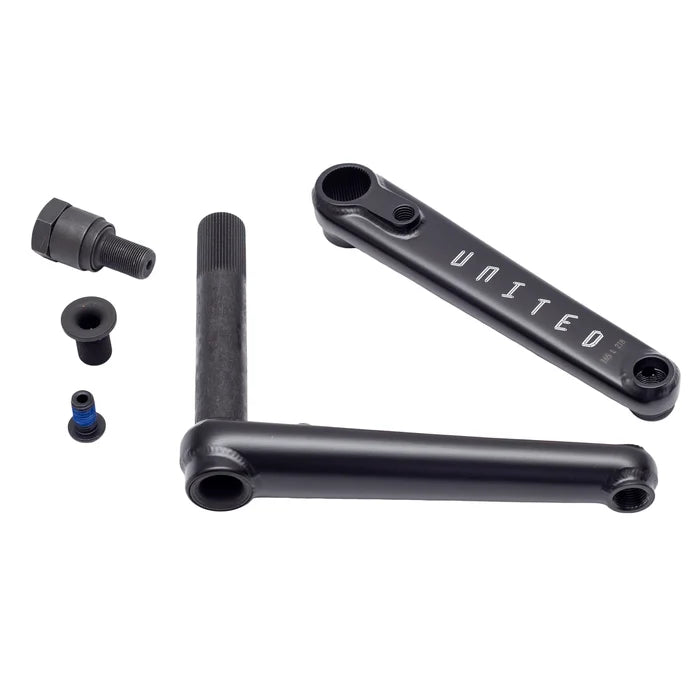

United Severance Cranks

The design has been kept slim, clean and simple to create classic looking crank set without any fancy gimmicks, but it’s whats on the inside that counts. by hollowing out the 22mm spindle as much as possible and creating arms with a shape to offer greater bend resistance and strength.

• FEA analysis tested and proven by the United team
  Simplicity of a 3pc system, with the ease of use and assembly of a 2pc
  Simple assembly, only one bolt required for tightening down arms
  Smooth rounded and precision design at spindle boss to help prevent ‘ankle catch’
  Clean, simple and classic arm shape with focus on strength not gimmicks
  Heat treated tubular 4130 cromo arms with flatter rear and more rounded front for improved bend resistance
  FEA tested 22mm 48 spline heat treated 4130 cromo ultra hollow spindle
  Recessed M15*1.0 cromo spindle bolt with sunken 6mm allen wrench hole
  Compatible with Metro spline drive sprocket for LHD use
  Installation & Removal tool included
  Small sachet of grease for installation/maintenance included
  165 or 175mm length arms
  Weight: 820gms / 1.80lbs / 28.9oz incl all bolts
